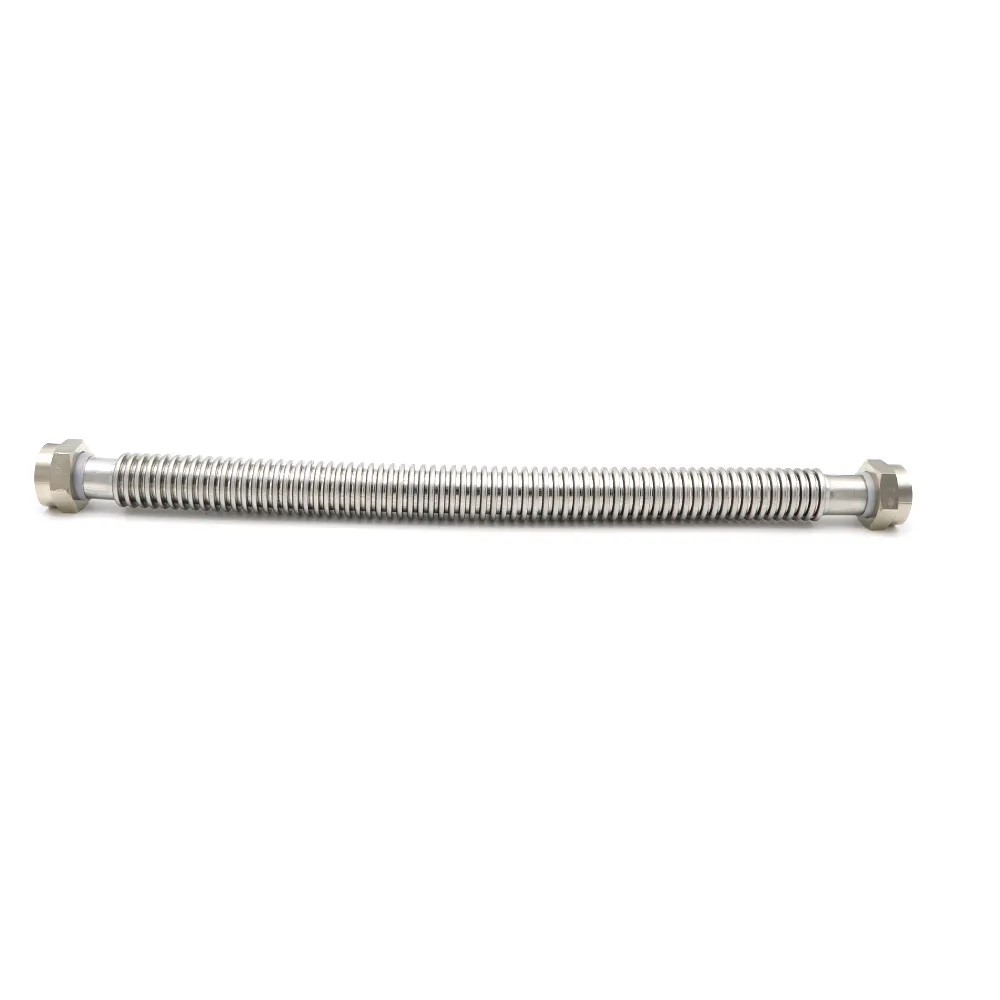

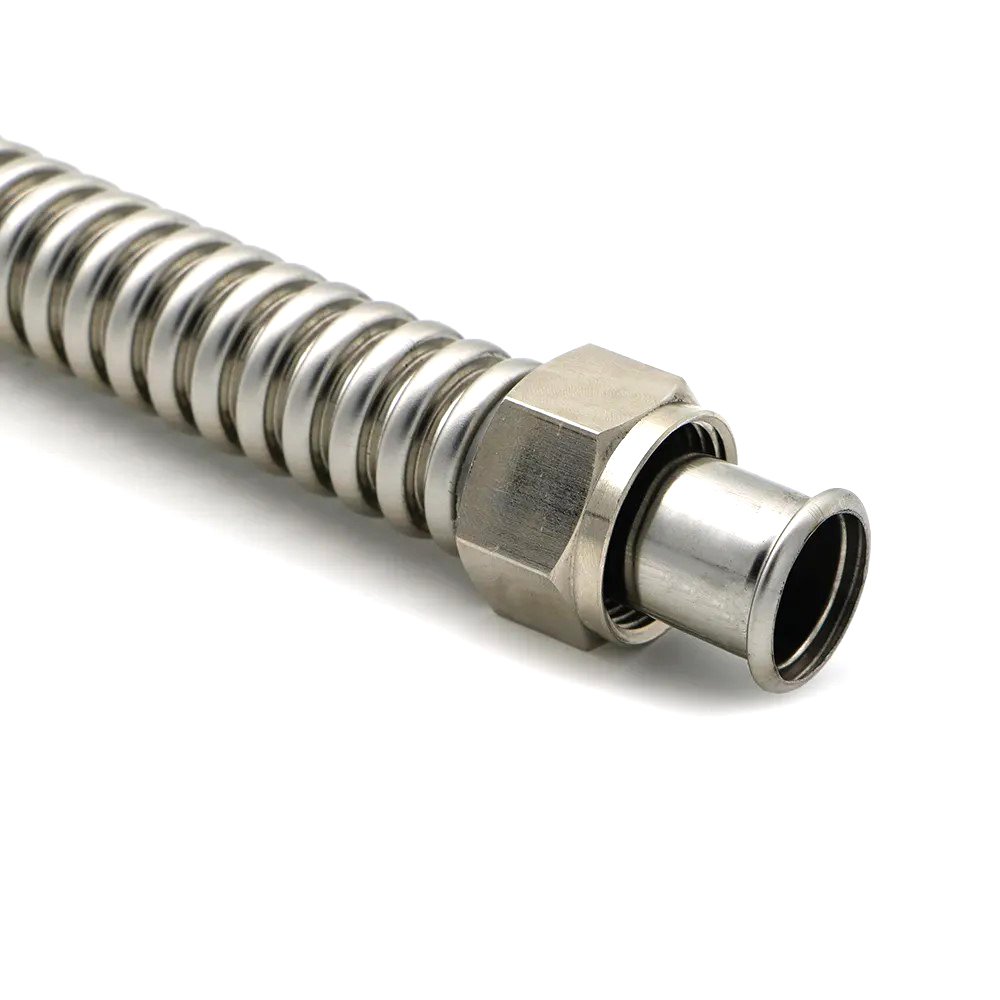

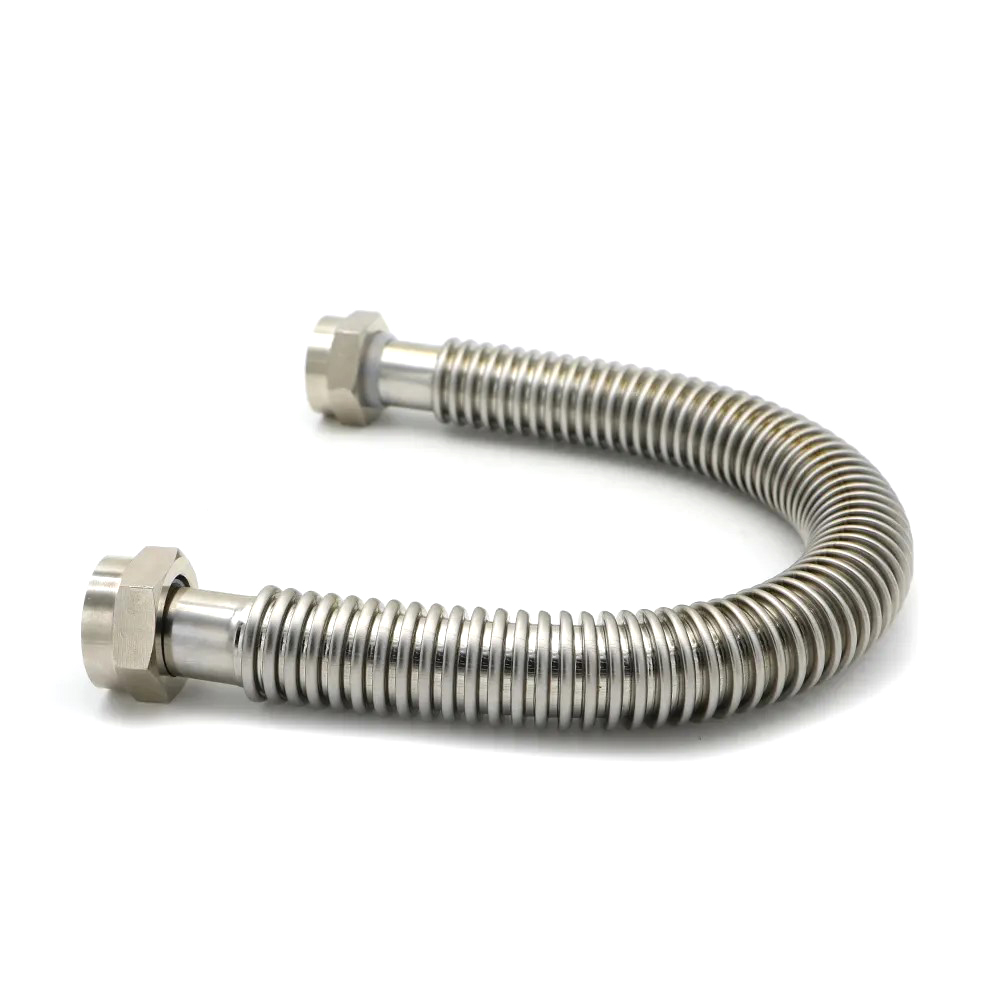

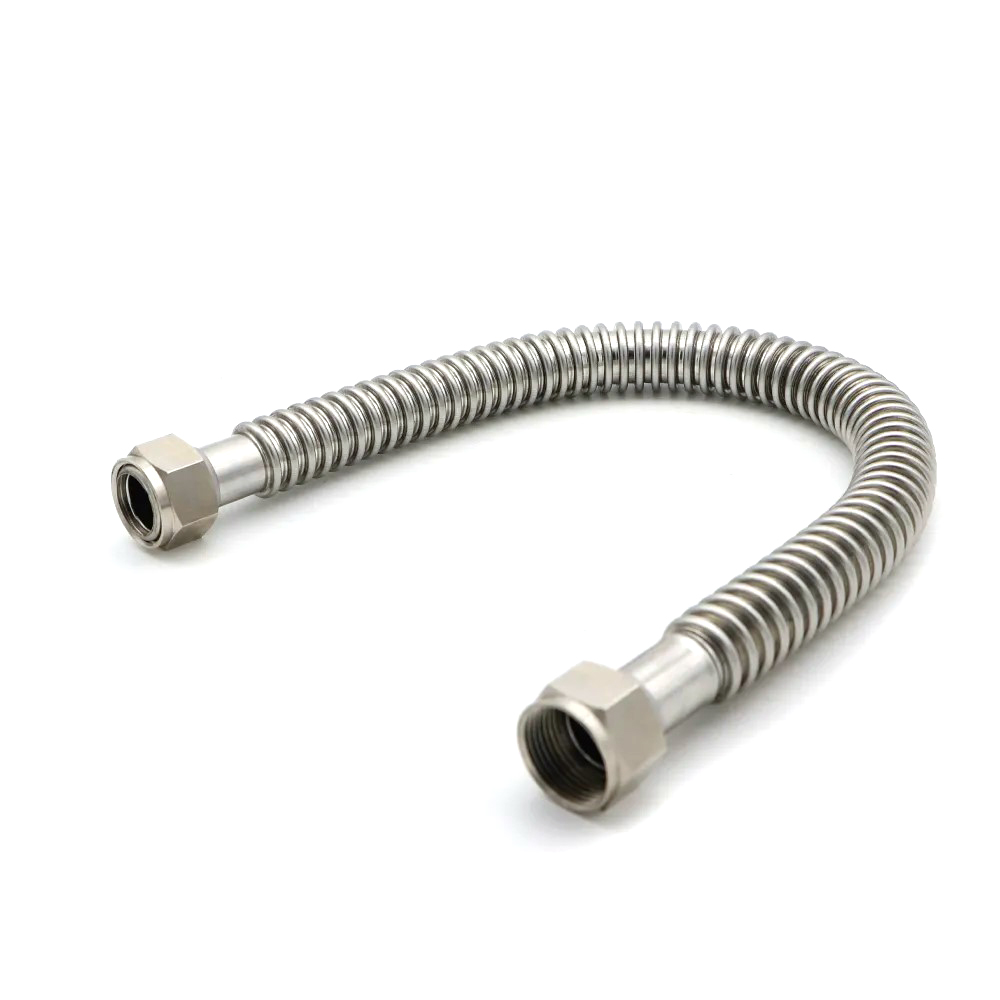

1/2 Flexible Stainless Steel Corrugated Hose
Product description
Stainless steel corrugated hose is made of thin-walled stainless steel welded tubing that has been processed into a fine waveform. Its main feature is strong temperature resistance, whether in high or low-temperature environments, which can remain stable while having excellent pressure resistance, suitable for air, steam, industrial gases, water, oil, pharmaceuticals, and other types of fluid media transport.
In practical application, stainless steel corrugated hose plays a significant role in the piping system. It can effectively absorb the impact of the reciprocating motion in the pipe system and reduce vibration. Adjusting the center position of the pipe is also extremely convenient. This means that it can effectively compensate for both dynamic changes in equipment operation and long-term thermal expansion, ensuring the stable operation of the piping system.
| Product Name |
Corrugated stainless steel tubing
|
|
Standard
|
JIS, AiSi, ASTM, GB, DIN, EN
|
|
Type
|
Thread
|
|
Certification
|
ISO
|
|
Tolerance
|
±1%
|
|
Processing Service
|
Bending, Welding, Decoiling, Punching, Cutting, Moulding
|
|
Protect coating
|
PE/PVC
|
|
Material
|
Stainless steel 304,316
|
|
Working temperature
|
100℃
|
|
Working pressure
|
12 Bar
|
|
Thickness
|
0.25mm
|
|
Size
|
1/2", 3/4"
|
1. Hot and cold water supply, water distribution around the house, water meter connection, replacement of worn-out pipelines during repair.
2. 12 Inch To 24 Inch Water Heater Water Hose Connectors, Water softener filter hose.
3. Corrugated Flexible Stainless Steel Flex Connectors for Hot Water Heaters, Tankless Water Heaters, and water softeners.
Corrugated hoses are used as economical, flexible connecting elements that permit movement, thermal expansion and vibrations, and that can be used as filling hoses. The starting material is a seamless or longitudinally welded, thin-walled tube into which corrugations are introduced by mechanical or hydraulic means using special tools. Corrugated hoses are absolutely leak-tight and are used to convey liquids or gases under pressure or as vacuum lines. They are also referred to as pressure hoses. Their special design achieves both flexibility and pressure resistance.
Features
1. High-temperature resistance
It can work stably for a long time in a high-temperature environment, and there will be no pipe deformation, cracking, or other problems caused by temperature changes. Especially suitable for piping systems for high-temperature transport media, such as steam, hot water, etc..
2. Corrosion resistance
Can work stably for a long time under the corrosive environment of acid alkali and other harsh media. This is due to the production of stainless steel bellows material - stainless steel, stainless steel has a high degree of corrosion resistance, and oxidation resistance, but also has high strength and wear resistance.
3. Easy to install and maintain
Stainless steel corrugated hoses have a simple structure, and the advantages of a variety of connection methods, greatly reducing the difficulty of installation, but also facilitating maintenance and replacement. Stainless steel corrugated hoses also have good flexibility and elasticity, in the piping system has good torsion and flexing ability, and can adapt to different shapes of piping systems and different transport media requirements.
4. Good abrasion resistance
The inner wall of stainless steel corrugated hoses has high smoothness, which makes it not easy to rust and accumulate dirt, and improves the circulation of the transport medium. In the piping system for conveying powders, particles, and liquid media, stainless steel corrugated hoses have good abrasion resistance, which can maintain the efficiency of pipeline conveying for a long time.
Application
As one of the leading stainless steel corrugated hose manufacturers, our wide range of hoses are available in several grades of stainless steel and comes with different flexible hose assemblies. These can be used for a variety of industries and application including：
Refineries, steel plant, paper plant, fertilizer and pharmaceuticals industries.
Lubrication system; Steam, hot water, pneumatic services; and Vacuum system
Railways, ports & shipyards, cryogenic service, air-conditioning & refrigeration.
Absorption, piping, boilers and vibration.
